Beckn Protocol

Introduction

The Beckn Protocol specification defines a standard protocol stack that allows independently run applications to take part in trusted value exchange transactions. These transactions usually move through discovery, contracting, fulfillment, and post-fulfillment.

This document explains Fabric v2 at a high level. It is an overview. It is meant to help a human or an AI agent understand how the parts fit together before going into the full API files and schema files.

This protocol stack consists of the following layers (bottom to top)

  1. Network Architecture

  2. API Specification

  3. Composable linked-data schema

  4. Communication Protocol

  5. Workflows

Let us understand each of these layers briefly.

Refer to the protocol here - https://github.com/beckn/protocol-specifications-v2

Network Architecture

A Fabric network is a set of separate services. Each service is run independently. The protocol gives them a common way to talk to each other.

In beckn protocol v2 (Hereafter referred to as v2) the main actor roles are the following:

  1. consumer node (consumer node) - the buyer side or user side platform

  2. provider node (provider node) - the seller side or provider side platform

  3. CS (Catalog Service) - the service that receives catalog publications from provider nodes

  4. DS (Discovery Service) - the service that answers discovery queries from consumer nodes

  5. Registry - the trust directory that stores participant identity, endpoints, and public keys

A consumer node discovers supply through a DS. A provider node publishes its catalog to a CS. After discovery, the consumer node usually talks directly to the provider node for the transaction. All actors use the Registry to find endpoints and public keys and to verify signatures.

In v2 the Registry is a DeDi-compliant directory. This means the trust layer is treated as a proper public directory and not as a custom side system.

The important point is this: v2 does not depend on a live multicast gateway for discovery. Discovery is catalog-first and index-based.

API Specification

The API specification defines the common shape of Fabric messages and endpoints.

In v2, the endpoint pattern is simple:

/beckn/{becknEndpoint}

For example, a participant may expose endpoints such as:

  • /beckn/discover

  • /beckn/on_discover

  • /beckn/select

  • /beckn/on_select

  • /beckn/confirm

  • /beckn/on_confirm

The exact actions a participant supports depend on its role.

Every beckn API call carries a transport envelope and a business payload.

The transport envelope is the fixed part of the protocol. It carries things like the action name, IDs, time, and routing data. The business payload is the domain data inside the message.

Beckn protocol specifies context, message, inReplyTo, status, and signatures in the transport contract. They are fixed. They must not be renamed or redefined by domain schema.

At a high level, the main action groups are:

  1. Discovery - discover, on_discover

  2. Contracting - select, on_select, init, on_init, confirm, on_confirm

  3. Fulfillment - status, on_status, update, on_update, track, on_track, cancel, on_cancel

  4. Post-fulfillment - rate, on_rate, support, on_support

  5. Infrastructure - publish and Registry lookups

Composable linked-data schema

In Beckn v2, the business payload is not just plain JSON. It is JSON-LD.

JSON-LD lets every type and field carry a shared meaning. It does this mainly through two ideas:

  • @context - tells the reader where the meaning of terms comes from

  • @type - tells the reader what kind of object it is

This is important because Fabric is meant to work across domains, geographies, and networks. A machine should not only read the data. It should also understand what the data means.

Beckn v2 separates schema into three layers:

  1. The transport envelope layer - the API envelope and container schemas

  2. The core schema layer - shared business types such as Catalog, Item, Offer, Intent, Contract, Provider, Fulfillment

  3. The domain schema pack layer - domain specific extensions such as retail, mobility, health, logistics, and others

Where possible, Beckn protocol maps types and fields to schema.org. When the protocol needs its own meaning, it uses the Fabric/protocol namespace. This gives global interoperability without losing Fabric-specific meaning.

This layered design solves an important problem. The transport API can stay small and stable. At the same time, the business schema can grow over time. New domains can be added without changing the basic transport contract.

The schema.beckn.io website is the public place where these schema resources can be published and browsed. It gives stable IRIs, JSON-LD contexts, RDF vocabularies, and versioned schema pages. In simple words, it is the public map of meaning for Fabric data.

Communication Protocol

The communication protocol defines how Fabric messages move over the network.

At the transport level, v2 uses HTTPS and digital signatures.

There are three main request modes:

  1. POST - used for normal forward requests and callbacks

  2. GET Body Mode - used when a GET request with a JSON body is allowed

  3. GET Query Mode - used when the whole request must fit inside a URL, such as a QR code or a deep link

Every request except GET Query Mode carries a Fabric Signature in the Authorization header. The receiver verifies that signature using the sender's public key from the Registry.

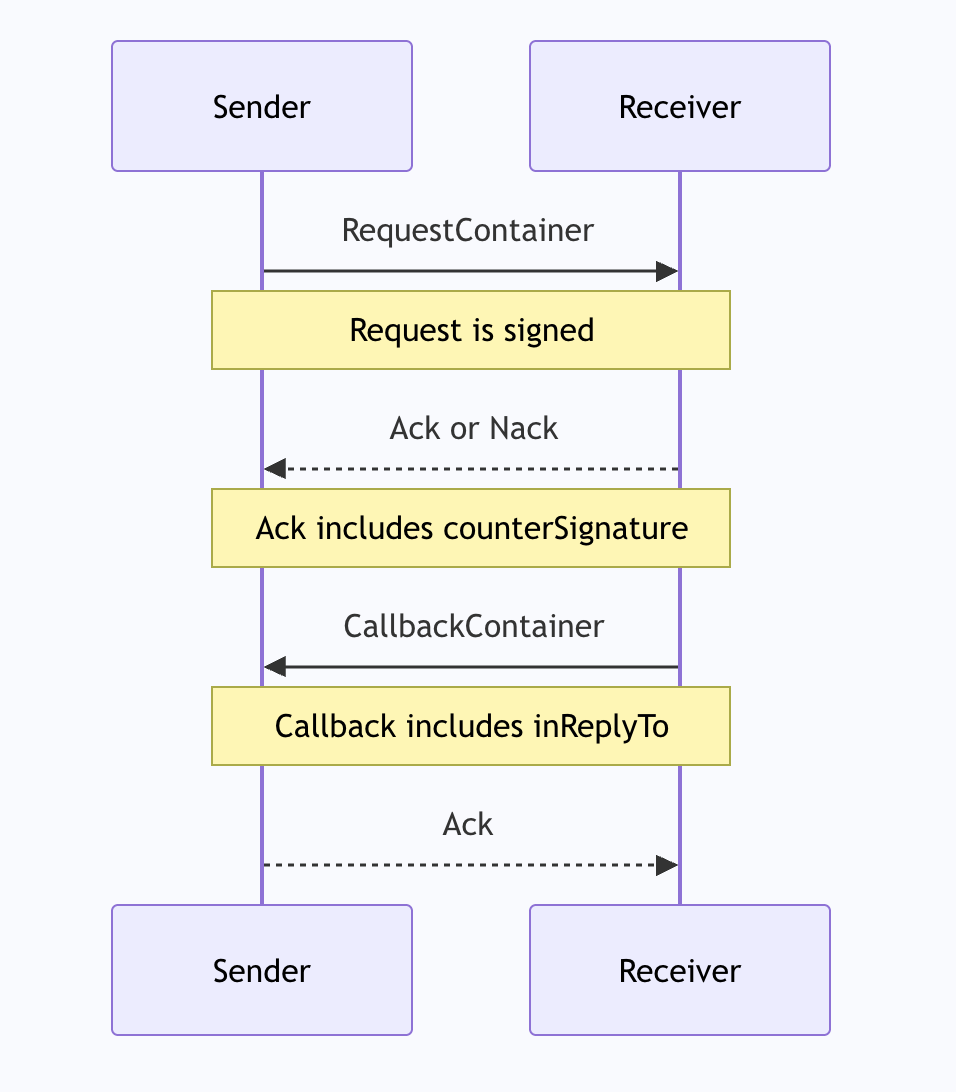

The communication pattern is usually as follows:

  1. The sender sends a signed request

  2. The receiver immediately returns Ack or Nack

  3. If the request is accepted, the business result usually comes later as a callback

  4. The callback carries inReplyTo so it can be tied to the original request

  5. The Ack carries a counterSignature, which works as a signed receipt

Screenshot 2026-07-15 at 7.26.18 PM.png


This means it is not just request-response in the usual web sense. It is mainly an asynchronous and event-driven protocol.

At a practical level, protocol supports all of the following patterns:

  • Same-session acknowledgement - the receiver immediately says whether it received the message

  • Asynchronous business response - the actual business result comes later through a callback

  • Synchronous business response in some cases - for example, discovery results may also be returned synchronously depending on network policy

  • Later state-driven messages - a later message may be sent because the state changed, not because a user clicked a button at that moment

GET Query Mode is a special case. It is used when the request must be a self-contained URL. In that mode, the server must not send an asynchronous callback. It only returns an acknowledgement.

Workflows

Workflows are the business paths built on top of the API actions.

The protocol gives reusable actions. A network then combines those actions into a workflow.

A simple workflow often looks like this:

  1. A provider node publishes catalog data

  2. A consumer node discovers that catalog through a DS

  3. The consumer node starts a transaction with a provider node

  4. The consumer node and provider node agree on terms

  5. The provider node fulfills the contract

  6. The parties may exchange rating or support information later

Not every network uses every action. Not every domain needs every step. The protocol gives the building blocks. The network chooses the path.

Understanding the Fabric API Specification

This section gives the API picture at a level useful for implementation. It keeps the discussion short and clear. A separate document can go action by action in more detail.

What changed in beckn v2

If you have seen older beckn material, these are the changes that matter most:

  1. Discovery is no longer based on live gateway multicast. provider nodes publish catalogs to the Catalog Service. consumer nodes discover through Discovery Service.

  2. The API surface is simplified around the common endpoint pattern /beckn/{becknEndpoint}.

  3. The transport contract and the business schema are now clearly separated.

  4. The business payload is JSON-LD, with shared meaning through @context and @type.

  5. The Registry is aligned to a DeDi-compliant directory model.

  6. Non-repudiation is stronger because acknowledgements can carry counterSignature and callbacks can carry inReplyTo.

What a fabric network participant must do

Any platform can take part in a Fabric network if it can do the following:

  1. Register its identity, endpoint, and public keys in the Registry

  2. Send signed fabric messages

  3. Verify signed fabric messages from others

  4. Implement the endpoints needed for its role

  5. Read and produce the shared JSON-LD payloads

The main actors

Let us look at the main actors one by one.

consumer node

A consumer node is the buyer side platform. It is the platform where the user, buyer, or demand side experience lives.

A consumer node usually does the following:

  1. Sends discovery requests to a DS

  2. Receives discovery results

  3. Sends transaction requests to provider nodes

  4. Receives callbacks from provider nodes

  5. Shows the results to the end user

provider node

A provider node is the provider side platform. It is the platform where the provider's catalog, pricing, contract logic, and fulfillment logic live.

A provider node usually does the following:

  1. Publishes its catalog to a CS

  2. Receives transaction requests from consumer nodes

  3. Sends callbacks to consumer nodes

  4. Updates contract and fulfillment state over time

CS (Catalog Service)

A CS is the catalog publishing service.

It receives catalog publications from provider nodes, validates them, normalizes them, and prepares them for indexing.

DS (Discovery Service)

A DS is the catalog discovery service.

It keeps an index of published catalog data and answers discovery requests from consumer nodes. This is why Fabric v2 discovery is fast and does not need live fan-out to all provider nodes.

Registry

The Registry is the trust directory of the network.

It stores participant records, endpoints, capabilities, and public keys. Before a participant sends a message, it can use the Registry to find where to send the message and how to verify the signature.

What every fabric packet contains

Every Fabric request or callback contains two main parts:

  • context

  • message

The context carries the routing and control data. The message carries the business data.

A callback also carries inReplyTo so that it can be tied to the original request.

A simplified Fabric packet looks like this:

{
  "context": {
    "domain": "beckn:retail",
    "action": "discover",
    "version": "2.0.0",
    "bapId": "bap.example.com",
    "bapUri": "https://bap.example.com/callback",
    "transactionId": "txn-123",
    "messageId": "msg-456",
    "timestamp": "2026-03-27T00:00:00Z",
    "ttl": "PT30S"
  },
  "message": {
    "@context": [
      "https://schema.org/",
      "https://schema.beckn.io/core/v2.0/context.jsonld"
    ],
    "@type": "Intent"
  }
}

The important thing to remember is this: the transport envelope and the business payload are different concerns.

  • The transport envelope tells you how the message should move

  • The business payload tells you what the message means

Transport envelope and business payload

Fabric v2 keeps these two layers separate on purpose.

The transport layer gives a stable message frame. It defines the container schemas such as Context, RequestContainer, CallbackContainer, Ack, Nack, CounterSignature, and InReplyTo.

The business layer gives the actual domain objects such as Catalog, Item, Offer, Intent, Contract, Fulfillment, Tracking, Rating, and Support.

This separation has a big benefit. The transport layer stays stable. The business layer can evolve across domains.

A note on v2 words

In older Fabric explanations, you will often see the word Order.

In Fabric v2 core schema, the more exact word is Contract. The idea is similar. It is the formal record of what the parties agreed to. In the same way, ContractItem replaces the older OrderItem.

This matters mainly at the schema layer. The transaction idea itself remains easy to understand: discovery leads to agreement, agreement leads to fulfillment, and fulfillment may be followed by support or rating.

The main request modes

The same Fabric action can be carried in different transport modes.

POST

POST is the normal mode for:

  • forward requests such as consumer node to DS or consumer node to provider node

  • callbacks such as DS to consumer node or provider node to consumer node

GET Body Mode

GET Body Mode lets a caller send a Fabric request in a GET request with a JSON body. This is useful in cases where GET semantics are needed but the caller can still send a body and expects a later callback.

GET Query Mode

GET Query Mode puts the full request and signature inside the URL query string.

This is useful for:

  • QR codes

  • deep links

  • bookmarkable search links

  • simple browser or device clients

In GET Query Mode there is no asynchronous callback. The server only returns an Ack or a Nack.

How discovery works in Fabric v2

Discovery is one of the biggest changes in Fabric v2.

In older models, discovery often depended on a gateway sending the query to many provider nodes in real time.

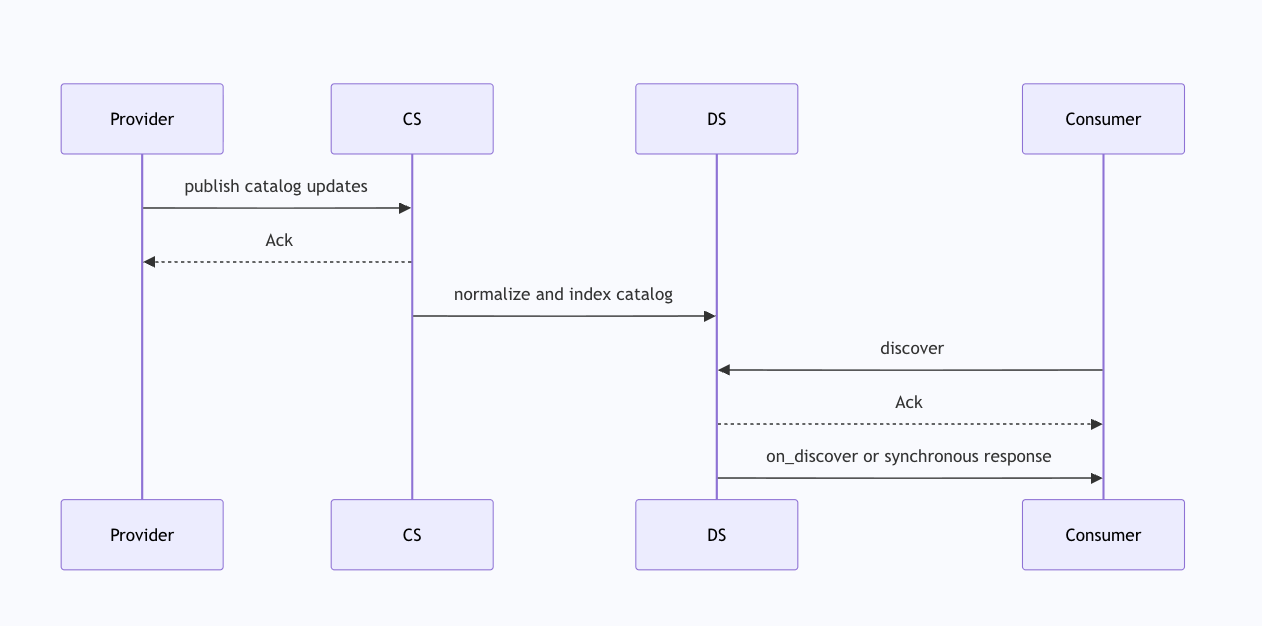

In Fabric v2, discovery is catalog-first.

  1. A provider node publishes catalog updates to a CS

  2. The CS validates and normalizes the data

  3. The CS forwards the data to a DS

  4. The DS indexes the catalog data

  5. A consumer node sends a discover request to the DS

  6. The DS returns matching catalog data

  7. After discovery, the consumer node talks directly to the chosen provider node

Screenshot 2026-07-15 at 7.27.38 PM.png



This design gives three major benefits:

  1. Discovery becomes faster

  2. provider nodes do not need to answer every live discovery query

  3. Catalog publication and catalog search can scale separately

The main action groups

The Fabric actions are best understood by stage.

Stage

Main actions

What they do

Discovery

discover, on_discover

Find matching catalog data

Contracting

select, on_select, init, on_init, confirm, on_confirm

Agree on scope, terms, price, and create the contract

Fulfillment

status, on_status, update, on_update, track, on_track, cancel, on_cancel

Manage the live state of the contract

Post-fulfillment

rate, on_rate, support, on_support

Handle rating and support

Infrastructure

publish, Registry lookups

Publish supply and resolve trust data

A simple way to think about these stages is:

  1. Discovery - find what is available

  2. Contracting - agree what will happen

  3. Fulfillment - do what was agreed

  4. Post-fulfillment - rate, support, and close the loop

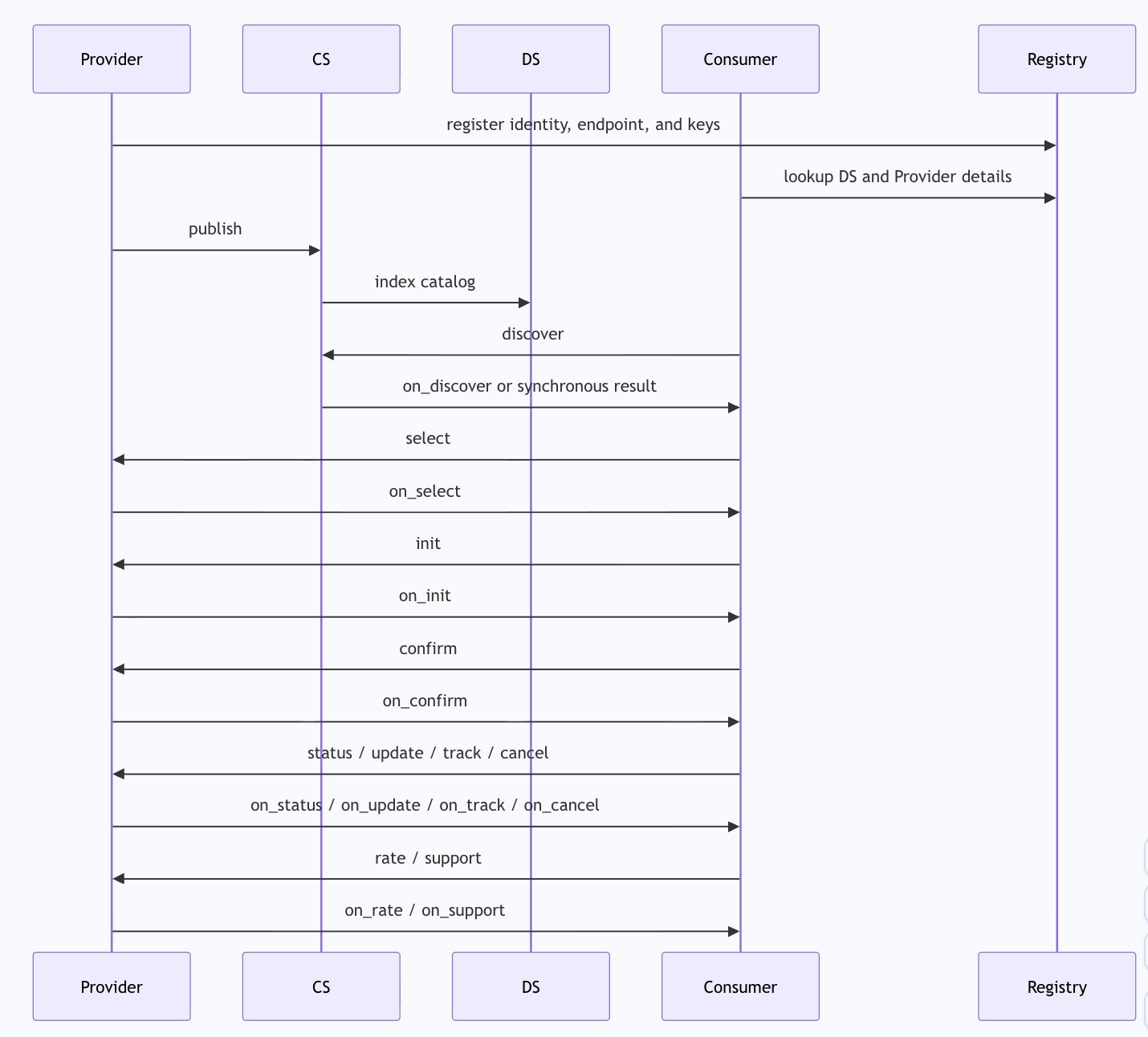

A full Fabric flow at a glance

Screenshot 2026-07-15 at 7.28.33 PM.png

Not every transaction uses every step. For example, some networks may not use track. Some domains may not need support. Some contracts may not change after confirmation, so update may never be used.

What an implementer should build

If you want to start implementing Fabric, it helps to think role by role.

If you are building a consumer node

You usually need to build the following:

  1. A client for calling DS and provider node endpoints

  2. Callback endpoints for receiving on_ actions

  3. Registry lookup support

  4. Message signing and signature verification

  5. JSON-LD payload handling

  6. Contract and fulfillment state management on the buyer side

If you are building a provider node

You usually need to build the following:

  1. Catalog publication to a CS

  2. Request endpoints for transaction actions

  3. Callback sending to consumer nodes

  4. Registry registration and key publication

  5. Message signing and signature verification

  6. Contract, payment, and fulfillment logic on the provider side

If you are building a Catalog Service

You need to build:

  1. A publish endpoint

  2. Catalog validation and normalization

  3. Deduplication and merge logic

  4. Forwarding of normalized catalog graphs to one or more DS instances

If you are building a Discovery Service

You need to build:

  1. A discover endpoint

  2. An index for Catalog, Item, Offer, and related graphs

  3. Ranking, filtering, and query logic

  4. Callback or synchronous response handling as allowed by the network policy

If you are building any Fabric actor

You should also remember the following:

  1. Use HTTPS

  2. Verify signatures on every incoming message

  3. Use the Registry for public key resolution

  4. Treat the transport envelope as fixed

  5. Treat the message as the business payload

  6. Load JSON-LD contexts in a controlled way. Do not trust unknown remote contexts blindly.

Summary

Fabric v2 becomes easy to understand once the separation of concerns is clear.

  • The network architecture tells you who talks to whom

  • The API specification tells you what endpoint and packet shape to use

  • The linked-data schema tells you what the payload means

  • The communication protocol tells you how signed requests, acknowledgements, and callbacks move

  • The workflows tell you how the actions are combined for a real business journey

At a practical level, Fabric v2 works like this:

  1. Providers publish catalog data

  2. Discovery services index that data

  3. Buyer side platforms discover matching supply

  4. Buyer and provider platforms agree on terms

  5. The provider fulfills the contract

  6. The parties may exchange rating or support data after that

If you understand these six ideas, you can start reading the Fabric transport files, schema files, and network guides with the right mental model.

Powered by Plain
